We offer a wide range of high quality drilling rigs for various drilling requirement, such as:
| Water Well | : | SCHRAMM T130XD, GEFCO Speed Star 40K, Desco SP7000SA |
| Diamond Core Drilling | : | Desco SP7000SA, Hanjin 6000 SD-RC, CS 1000, Man Portable Drill Rigs |
| Blast Hole Drilling | : | Sunward De 165, Furukawa HCR 1500, Air Track IRCM 345 |
| Reverse Circulation (RC) Drilling | : | GEFCO Speed Star 40K, Desco SP7000SA, Hanjin 6000 SD-RC |
| Horizontal and Directional Drilling | : | Vermeer D50 x 100 A Navigator, Vermeer D50 x 88 VBM Navigator |
| Construction / Geotechnical Drilling | : | Desco SP7000SA, Hanjin 6000 SD-RC, CS 1000, 250 Man Portable drill rig, Air Track IRCM 345 |
| Loose Material Sampling | : | SONICMAST 301 CST |
| Oil, Gas and Geothermal Drilling | : | SCHRAMM T130XD, GEFCO Speed Star 40K, Desco SP7000SA |
Drilling Rigs
SCHRAMM T130XD
Mud Rotary and RC Drilling
CBM, Oil and Gas, Geothermal, Water Well
SPECIFICATIONS
- Dimension (LxWxH-transport in M) : 13.0 X 2.6 X 4.0
- Dimension (Lx WxH-mast up in M) : 13.0 X 2.6 X 21.65
- Weight: 43 Ton
- 760HP Engine Detroit/MTU V12 2000 Series
- 130.000lbs(59Ton) Pull Up
- 32.000 lbsPull Down
- Dual Capacity Compressor 1,350cfm/350psi and 1,500cfm/500 psi
- Drill Pipe 30’ x 4-1/2” OD
- Depth Capacity : Mud Rotary up to 2,000M
GEFCO Speedstar40K
Mud Rotary and RC Drilling
CBM, Oil and Gas, Geothermal, Water Well
SPECIFICATIONS
- Dimension (LxWxH-transport in M) : 13.0 X 2.6 X 4.1
- Dimension (Lx WxH-mast up in M) : 13.0 X 2.6 X 11.0
- Weight : 28.5 T
- 550 HP Engine CAT C-15
- Western Star Truck Mounted
- Top head rated working capacity : 36.5 Ton
- Pull down and hold back capacity : 11 Ton and 18 Ton
- On board 1,000cfm/3500 psi Sullair2 Stage Twin Screw Rotary Compressor
- On Board Gardner Denver 5-1/2” x 8” Mud Pump Cap. 840 LPM (220 GPM)/ 330 psi
- Depth Capacity : Mud Rotary up to 1,000M
HANJIN Power 6000SD-RC
Multipurpose Drilling Rig
(Mud Rotary, RC, and Diamond Core Drilling)
SPECIFICATIONS
- Dimension (LxWxH-transport in M) : 9.0 X 2.2 X 2.6
- Dimension (Lx WxH-mast up in M) : 9.0 X 2.2 X 9.5
- Track Mounted
- Weight : 7.5 Ton; Crawler Mounted
- Hyundai D6BR-G1 165 HP
- Pull down and hold back capacity : 8 Ton and 16 Ton
- On board JDMP200 Mud Pump Capacity 200LPM/40 bar
- Drill pipe length max. 6.0 M
- Standard OD Pipe & Casing : 3-1/2” – 5”
- Depth Capacity : RC 250m , PQ 300m, HQ 500m, NQ 1000m
DESCO SP7000SA
Multipurpose Drilling Rig
(Mud Rotary, RC, and Diamond Core Drilling)
SPECIFICATIONS
- Dimension (LxWxH-transport in M) : 10.5 X 2.3 X 2.8
- Weight: 16.5 Ton
- 270 HP Hyundai D6AZ
- 25Ton Pull Up
- 12 Ton Pull Down
- Drill Pipe 30’ x 4-1/2” OD
- Depth Capacity : Mud Rotary up to 700 M
- Diamond Coring up to(M) 800 PQ, 1250 HQ, 1750 NQ
VERMEER D50 x 100A Navigator
Horizontal Directional Drilling Rig
SPECIFICATIONS
- Dimension (LxWxH-transport in M) : 6.4 X 2.4 X 2.5
- Operating Weight : 13,245 Kg
- Engine Cummins 185 HP
- Rod diameter 3.5” (Standard) and Length 15ft (4.6m)
- Separated Screw Compressor 1,100 cfm/350psi
- Max flow water system 548 LPM, Max flow pressure 1,000psi
- Automated rod loader
- Actual thrust and pull back 17,320 Kg and 22,500 Kg
- Max Spindle torque @160RPM 3,300 ft-lb (4,470 Nm)
- Minimum bore diameter 4.5” (11,4 cm)
VERMEER D50 x 88 VBM Navigator
Horizontal Directional Drilling Rig
SPECIFICATIONS
- Dimension (LxWxH-transport in M) : 6.98 X 2.49 X 2.3
- Operating Weight : 10,000 Kg
- Engine John Deere 4045 173HP
- Max Travel Speed : 3,4 kmph
- Rod diameter 2,875” (Standard) and Length 15ft (4.6m)
- Max flow water system 265 LPM, Max flow pressure 1,100psi
- Automated rod loader
- Actual thrust and pull back 22,727 Kg and 22,727 Kg
- Max Spindle torque @160RPM 8,800 ft-lb (11,931 Nm)
- Minimum bore diameter 3.5” (8,9 cm)
FURUKAWA HCR1500-ED
Top Hammer Blast Hole Drill Rig
SPECIFICATIONS
- Overall Length 10,05m, overall width with Pre-Cleaner : 3,725m
- Overall Transport Height : 3,5 m
- Operating Weight : 16,950 Kg
- Engine Cummins 300 HP @ 2,200 RPM
- Max. Travel Speed 4,2 kmph
- Bit Diameter : 3.5” – 5,5”
- Rod Size T-51 and Length 12 ft
- On Board Compressor 750 cfm / 175 psi
AIRTRACK IRCM 345
Top Hammer Blast Hole Drill Rig
SPECIFICATIONS
- 1 unit Airtrack Ingersoll-Rand CM345 Crawler Drill Rig
- 600 cfm / 175 psi Cummins Portable Screw Rotary
- Bit Diameter 2-1/2” – 3-1/2”
- Rod Size T38/T45

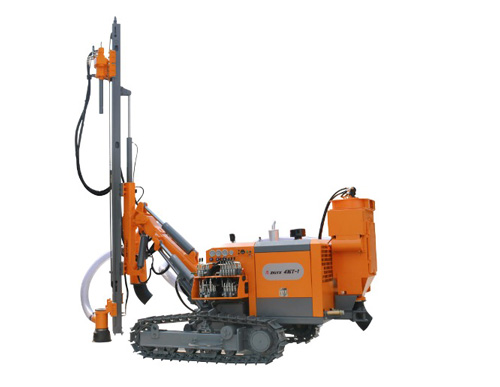

SUNWARD DE 165
Down The Hole Hammer Blast Hole Drill Rig
SPECIFICATIONS
- Drilling Range (mm) : 100-180
- Drilling Rod Dia (mm) : 110
- Drilling Rod Length (m) : 6mx6
- Max Drilling Depth (m) : 36
- Sullair Air Compressor 1100 cfm/350 psi
SONICMAST 301 CST
SPECIFICATIONS
- Maximum Height of Mast 3720 mm
- Maximum torque 5000 Nm.
- Maximum casing diameter 219 mm.
- Hydraulic Power (Continuous) 55 KW.
- Vibration Power 27 KW.
- Vibration 150 Hz Sonic
- Rotation Power 27 KW.
- Sonic vibration oscillator output force 100 kN.
- Capacity Depth 50 meter.
CS1000 Heliportable / Skid Mounted
Diamond Core Drilling Rig
SPECIFICATIONS
- Depth Capacity
- -NQ 750 m
- -HQ 400 m
- -PQ 200 m
- Engine : Deutz 114 HP
- Total Weight : 3300 kg
- Max. Weight : 450 kg (in piece)
- Dimension (m) : 2,9 x 1,6 x 1,5
- Mast : 9,4 m
BMP 250 Manportable Rig
Diamond Core Drilling Rig
SPECIFICATIONS
- Depth Capacity :
- -NQ 325 m
- -HQ 200 m
- Engine : Kubota 46 HP
- Total Weight : 1600 Kg
- Max Weight : 195 kg (in piece)
- Dimension (L x W x H) in m :
- -Mast Down : 6,0 x 1,35 x 2,3
- -Mast Up : 3,65 x 1,35 x 6,0
